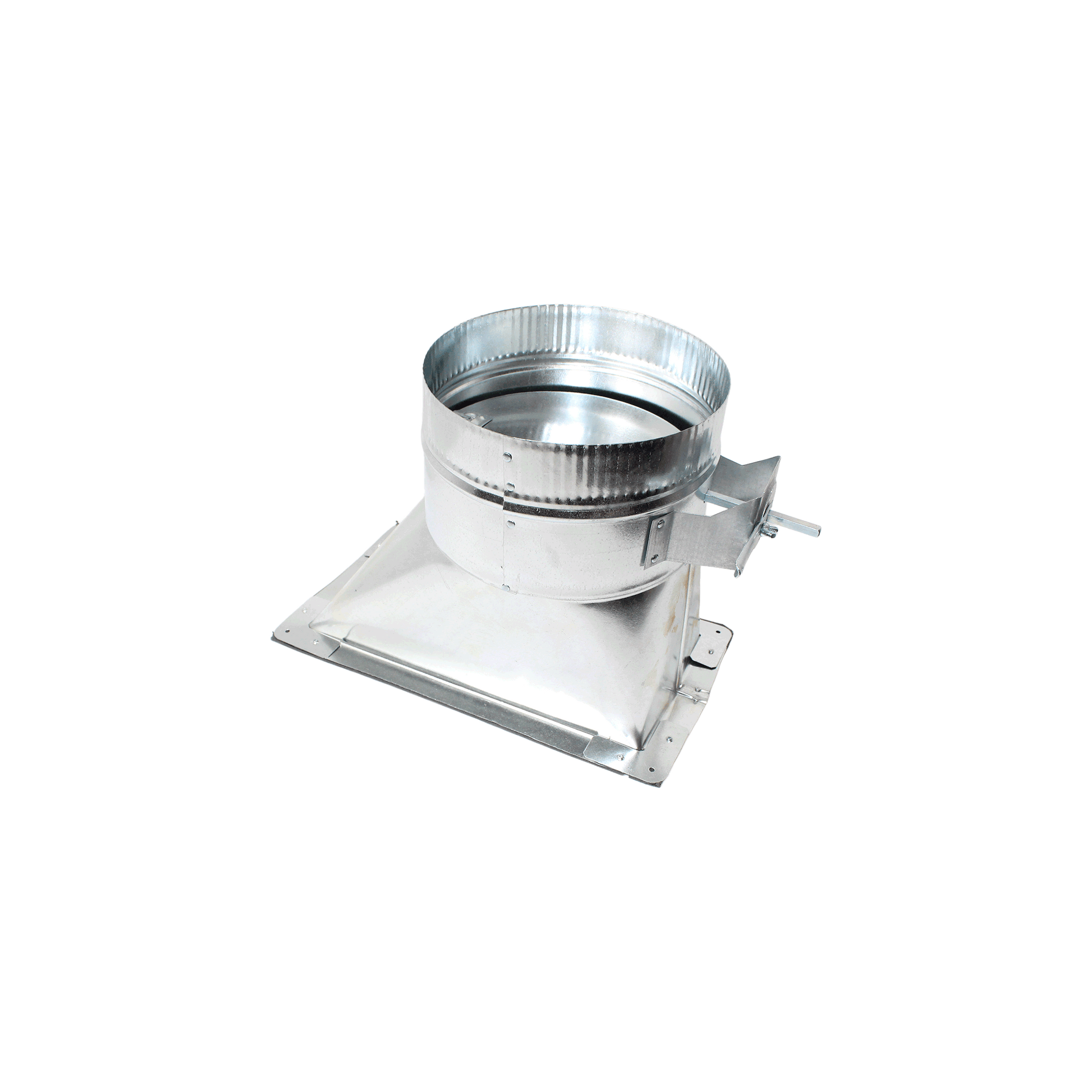

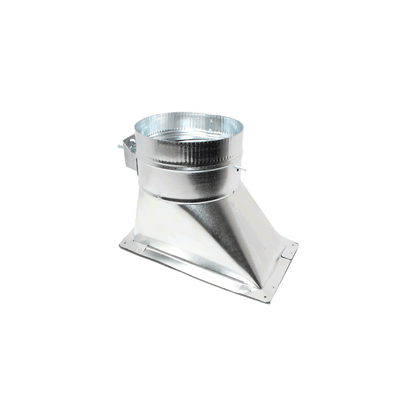

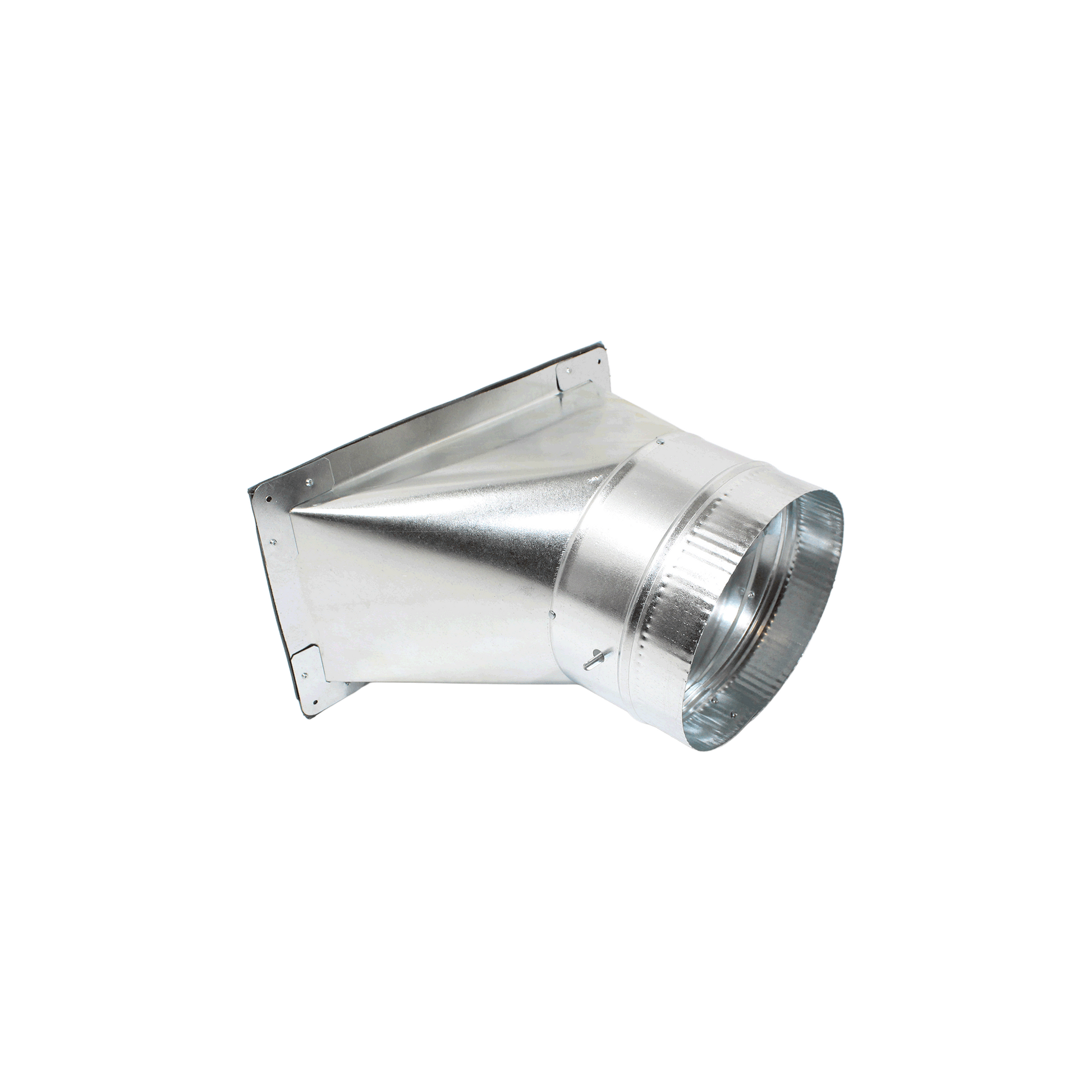

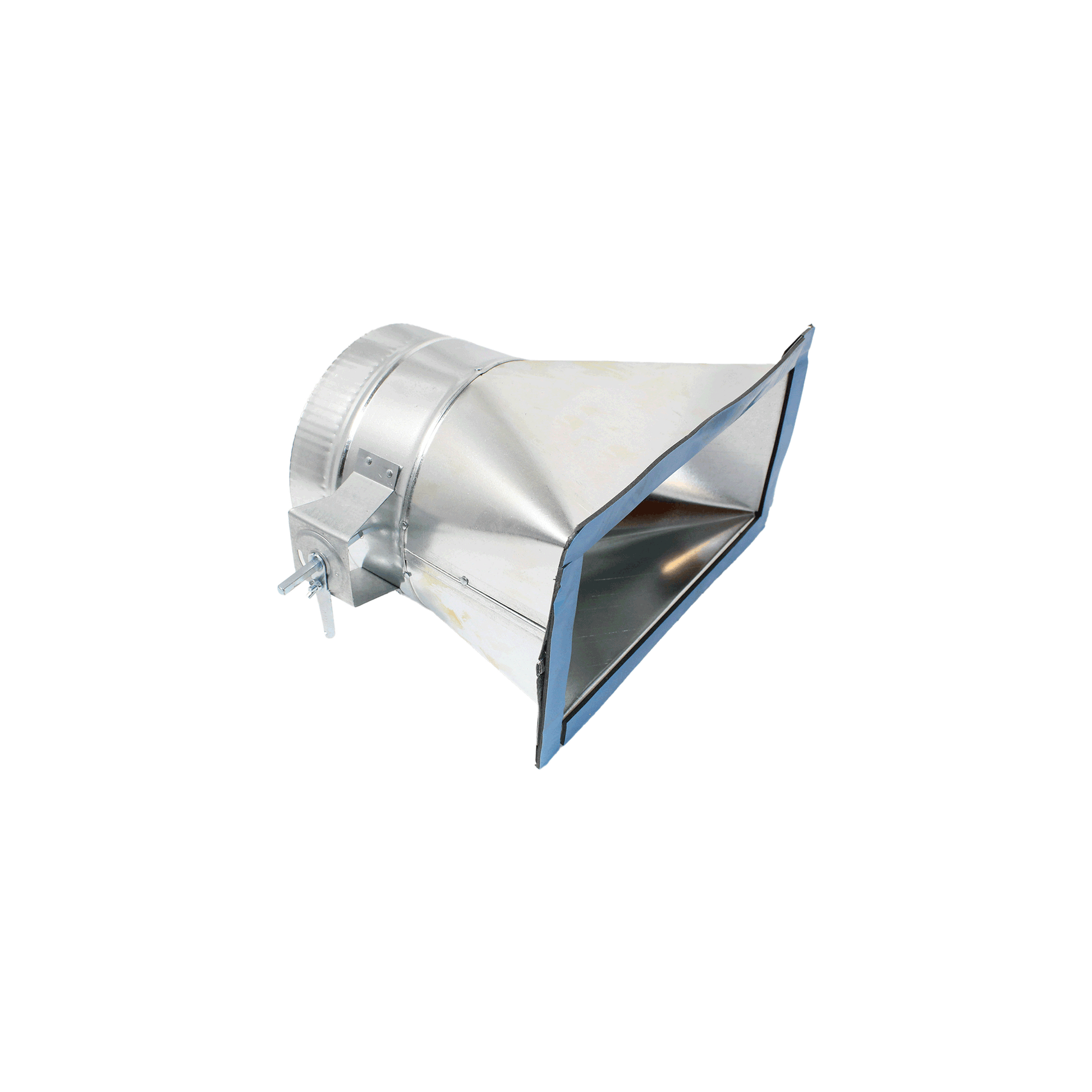

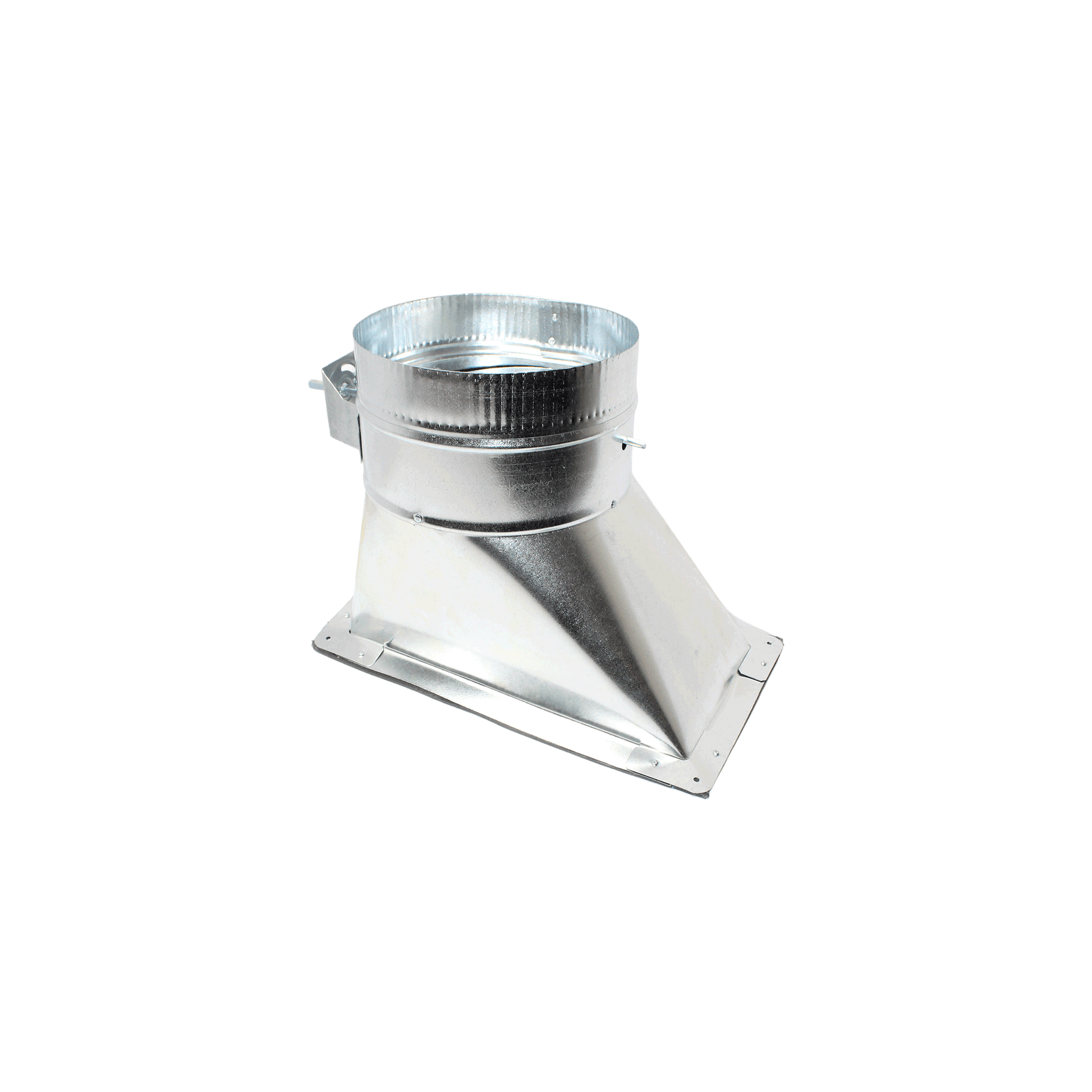

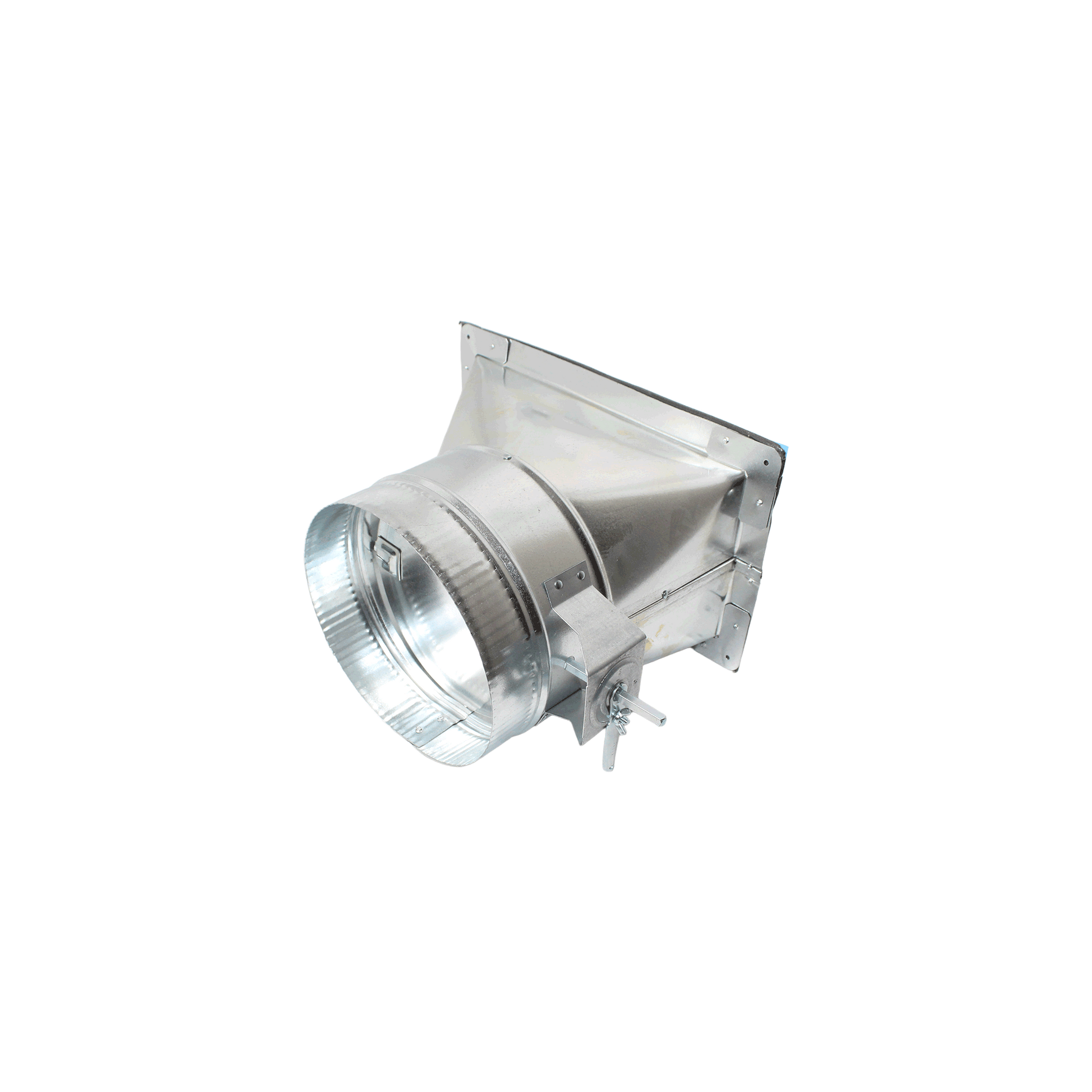

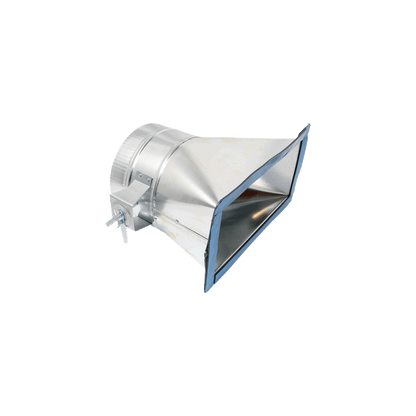

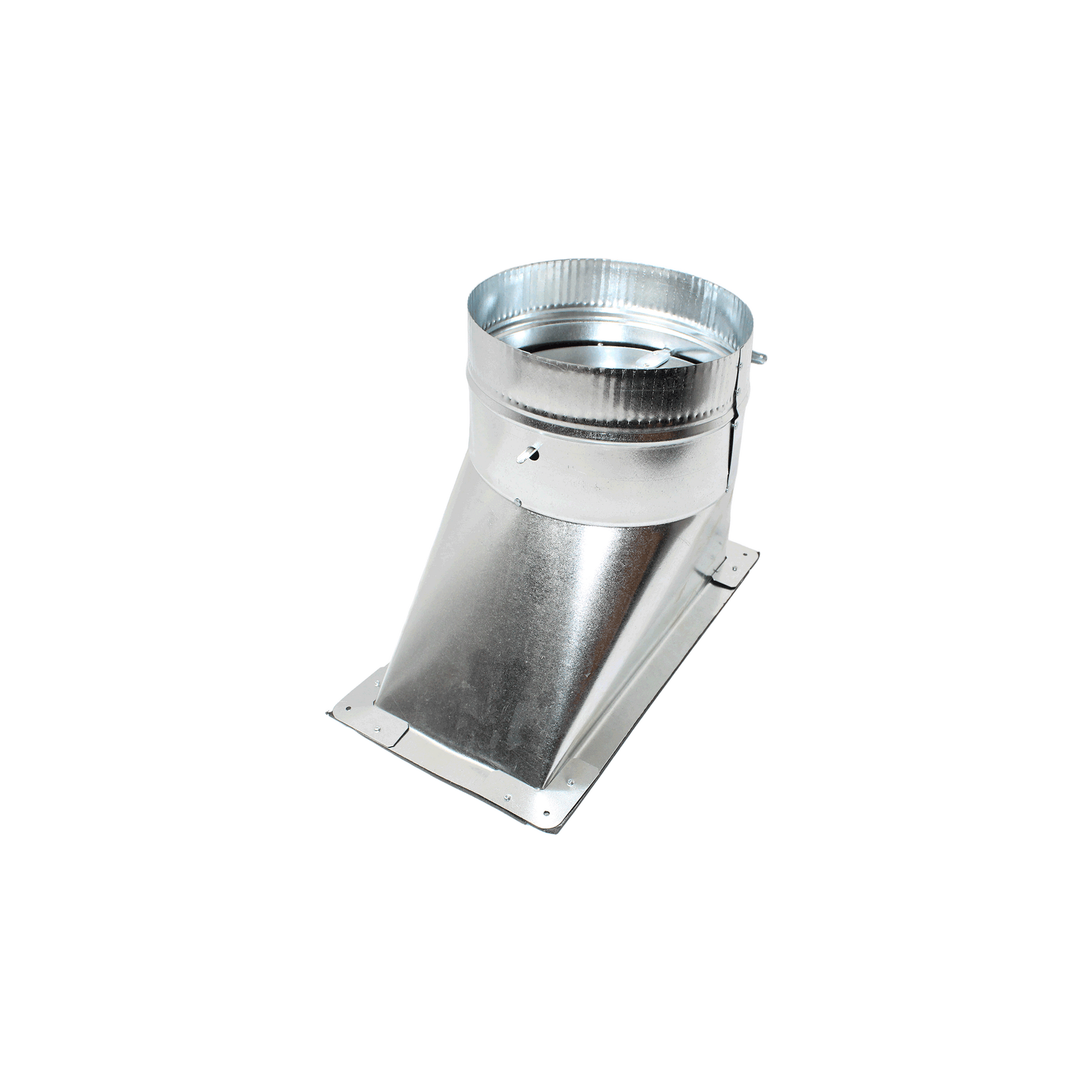

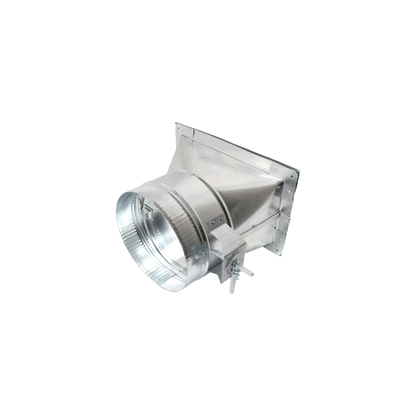

Jer-Air Model AT-502 | Air Tight 45° Takeoff With Gasket, Damper, & 2" Standoff Quadrant - 1/4" Hardware

Includes peel off adhesive gasket (1" x 1/8")
Includes Damper (22, 24, 26, or 28 gauge)

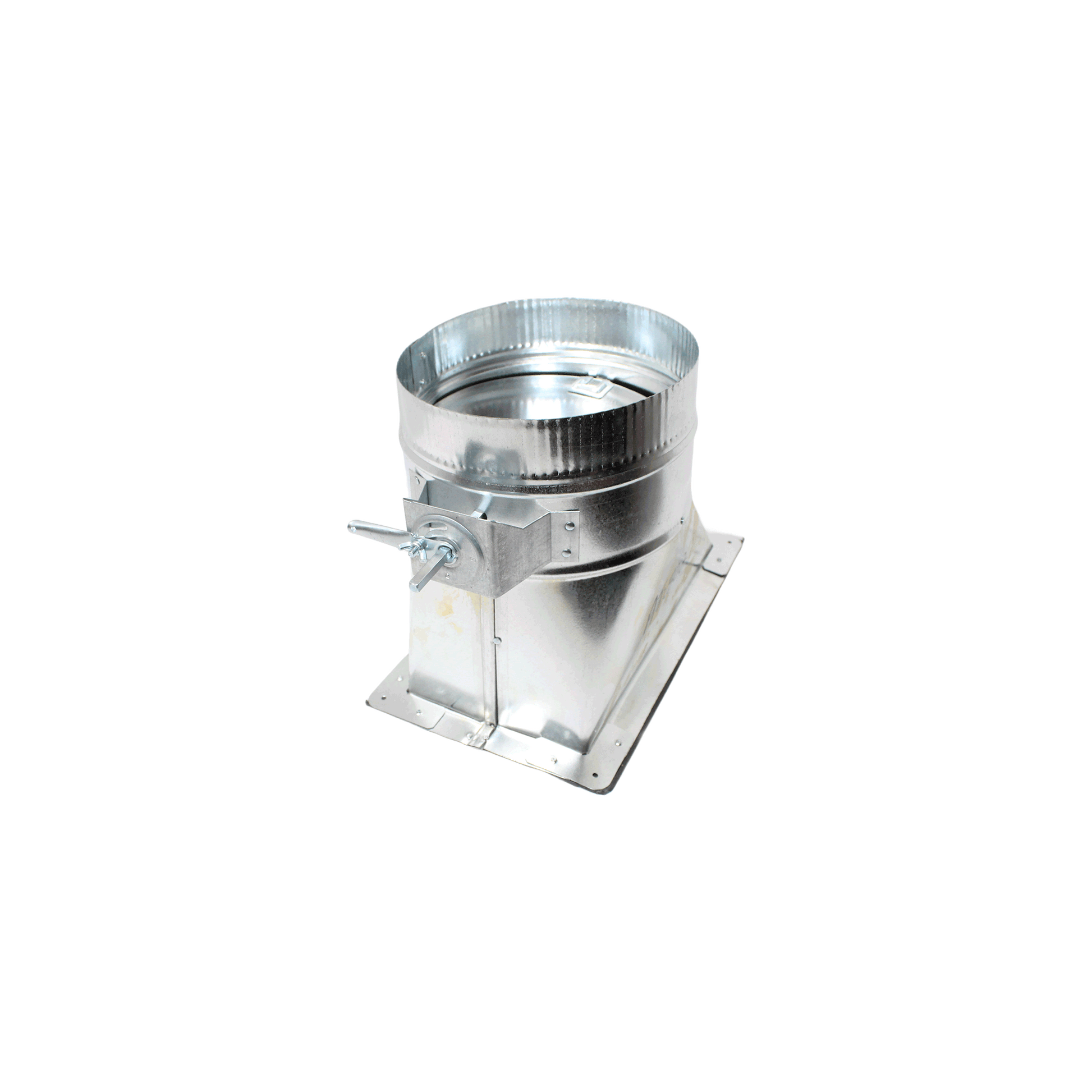

Features 2" standoff quadrant
Features 1/4" hardware
4"-9" diameter models are 28 gauge thickness
10"-20" diameter models are 26 gauge thickness
Damper blade available in 28, 26, 24, and 22 gauge metal

Takeoff fittings are constructed of galvanized sheet metal of lock forming and roll forming quality.

The 1" wide mounting flanges come complete with die formed corner clips for added rigidity and pre-punched screw holes.

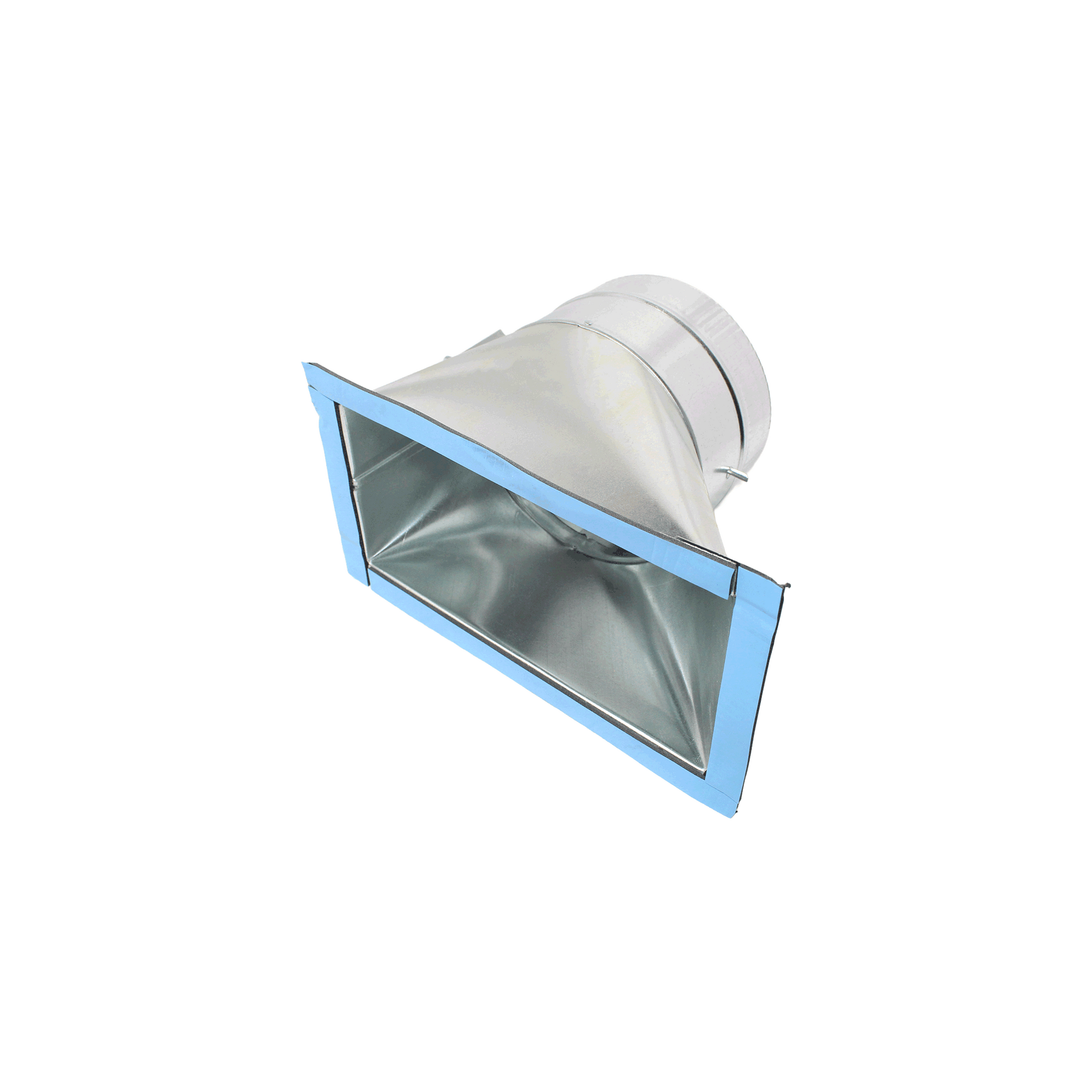

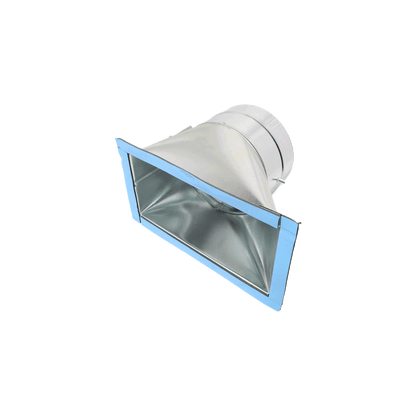

A peel off adhesive gasket (1"x x1/8") is provided by the factory to hold the fitting securely in place during installation and to assure minimal leakage.

Damper blade can be constructed with 28, 28, 24 or 22 gauge material.

$20.56 USD

Sale Sold out

Best Prices
Fastest Lead Times
Highest Quality

View full details

Available Sizes

Diameter/Length/Width/Height	Price/ea.
28 Gauge 4"D x 8"L x 6"W x 10"H / 22 Gauge Damper	$20.56
28 Gauge 4"D x 8"L x 6"W x 10"H / 24 Gauge Damper	$20.56
28 Gauge 4"D x 8"L x 6"W x 10"H / 26 Gauge Damper	$20.56
28 Gauge 4"D x 8"L x 6"W x 10"H / 28 Gauge Damper	$20.56
28 Gauge 5"D x 10"L x 5"W x 10"H / 22 Gauge Damper	$20.72
28 Gauge 5"D x 10"L x 5"W x 10"H / 24 Gauge Damper	$20.72
28 Gauge 5"D x 10"L x 5"W x 10"H / 26 Gauge Damper	$20.72
28 Gauge 5"D x 10"L x 5"W x 10"H / 28 Gauge Damper	$20.72
28 Gauge 5"D x 12"L x 6"W x 10"H / 22 Gauge Damper	$21.17
28 Gauge 5"D x 12"L x 6"W x 10"H / 24 Gauge Damper	$21.17
28 Gauge 5"D x 12"L x 6"W x 10"H / 26 Gauge Damper	$21.17
28 Gauge 5"D x 12"L x 6"W x 10"H / 28 Gauge Damper	$21.17
28 Gauge 7"D x 12"L x 6"W x 10.25"H / 22 Gauge Damper	$23.77
28 Gauge 7"D x 12"L x 6"W x 10.25"H / 24 Gauge Damper	$23.77
28 Gauge 7"D x 12"L x 6"W x 10.25"H / 26 Gauge Damper	$23.77
28 Gauge 7"D x 12"L x 6"W x 10.25"H / 28 Gauge Damper	$23.77
28 Gauge 8"D x 12"L x 6"W x 10.25"H / 22 Gauge Damper	$24.59
28 Gauge 8"D x 12"L x 6"W x 10.25"H / 24 Gauge Damper	$24.59
28 Gauge 8"D x 12"L x 6"W x 10.25"H / 26 Gauge Damper	$24.59
28 Gauge 8"D x 12"L x 6"W x 10.25"H / 28 Gauge Damper	$24.59
28 Gauge 9"D x 15"L x 6"W x 10.25"H / 22 Gauge Damper	$26.87
28 Gauge 9"D x 15"L x 6"W x 10.25"H / 24 Gauge Damper	$26.87
28 Gauge 9"D x 15"L x 6"W x 10.25"H / 26 Gauge Damper	$26.87
28 Gauge 9"D x 15"L x 6"W x 10.25"H / 28 Gauge Damper	$26.87
26 Gauge 10"D x 16"L x 6.5"W x 12"H / 22 Gauge Damper	$27.68
26 Gauge 10"D x 16"L x 6.5"W x 12"H / 24 Gauge Damper	$27.68
26 Gauge 10"D x 16"L x 6.5"W x 12"H / 26 Gauge Damper	$27.68
26 Gauge 10"D x 16"L x 6.5"W x 12"H / 28 Gauge Damper	$27.68
26 Gauge 12"D x 18"L x 8.5"W x 12"H / 22 Gauge Damper	$31.54
26 Gauge 12"D x 18"L x 8.5"W x 12"H / 24 Gauge Damper	$31.54
26 Gauge 12"D x 18"L x 8.5"W x 12"H / 26 Gauge Damper	$31.54
26 Gauge 12"D x 18"L x 8.5"W x 12"H / 28 Gauge Damper	$31.54
26 Gauge 14"D x 20"L x 9.5"W x 13.75"H / 22 Gauge Damper	$38.95
26 Gauge 14"D x 20"L x 9.5"W x 13.75"H / 24 Gauge Damper	$38.95
26 Gauge 14"D x 20"L x 9.5"W x 13.75"H / 26 Gauge Damper	$38.95
26 Gauge 14"D x 20"L x 9.5"W x 13.75"H / 28 Gauge Damper	$38.95
26 Gauge 16"D x 24"L x 12"W x 14.5"H / 22 Gauge Damper	$50.39
26 Gauge 16"D x 24"L x 12"W x 14.5"H / 24 Gauge Damper	$50.39
26 Gauge 16"D x 24"L x 12"W x 14.5"H / 26 Gauge Damper	$50.39
26 Gauge 16"D x 24"L x 12"W x 14.5"H / 28 Gauge Damper	$50.39
26 Gauge 18"D x 26"L x 14"W x 14.5"H / 22 Gauge Damper	$59.47
26 Gauge 18"D x 26"L x 14"W x 14.5"H / 24 Gauge Damper	$59.47
26 Gauge 18"D x 26"L x 14"W x 14.5"H / 26 Gauge Damper	$59.47
26 Gauge 18"D x 26"L x 14"W x 14.5"H / 28 Gauge Damper	$59.47
26 Gauge 20"D x 28"L x 16"W x 15.25"H / 22 Gauge Damper	$74.58
26 Gauge 20"D x 28"L x 16"W x 15.25"H / 24 Gauge Damper	$74.58
26 Gauge 20"D x 28"L x 16"W x 15.25"H / 26 Gauge Damper	$74.58
26 Gauge 20"D x 28"L x 16"W x 15.25"H / 28 Gauge Damper	$74.58
