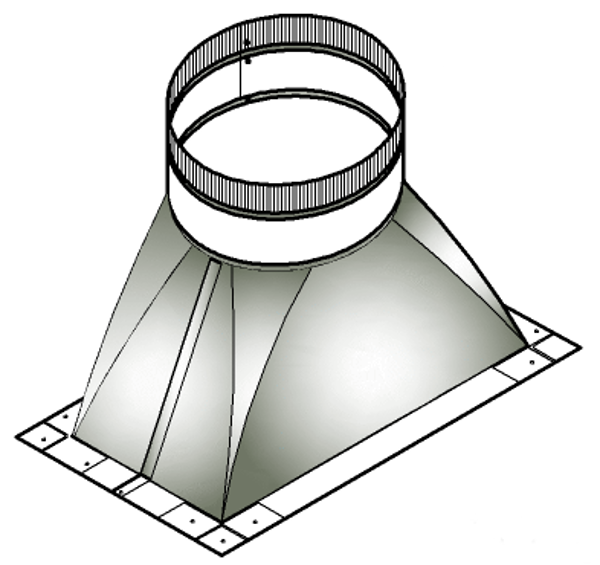

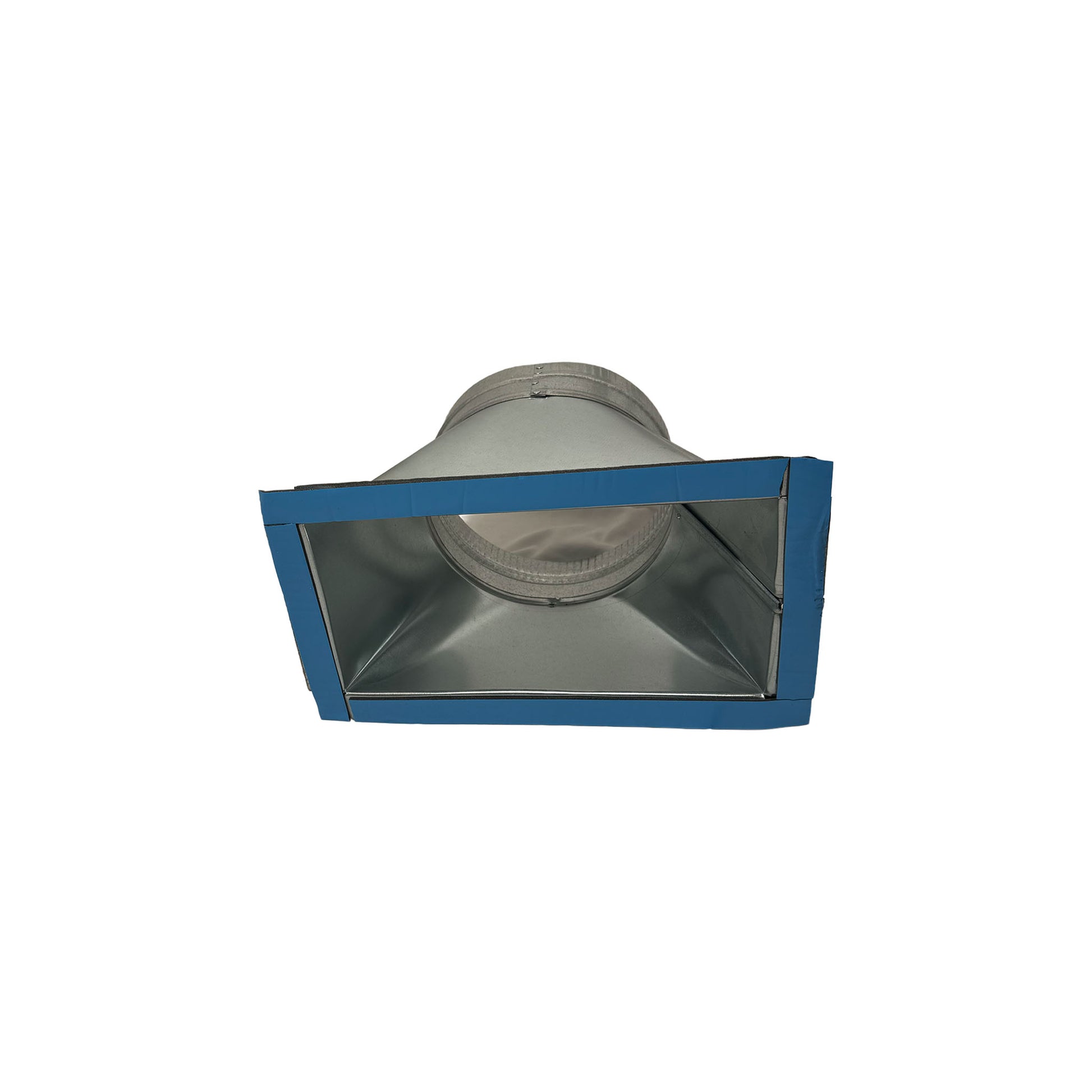

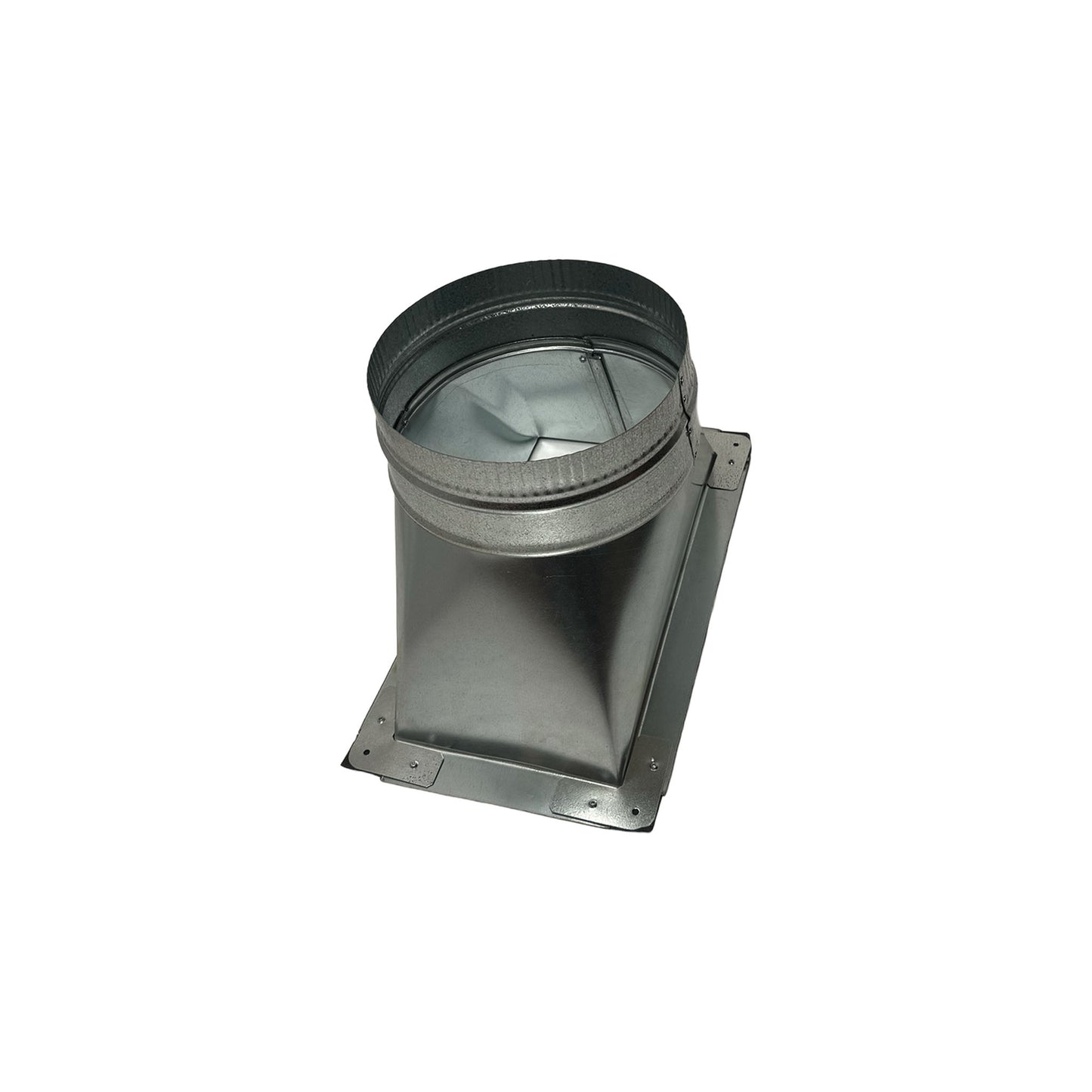

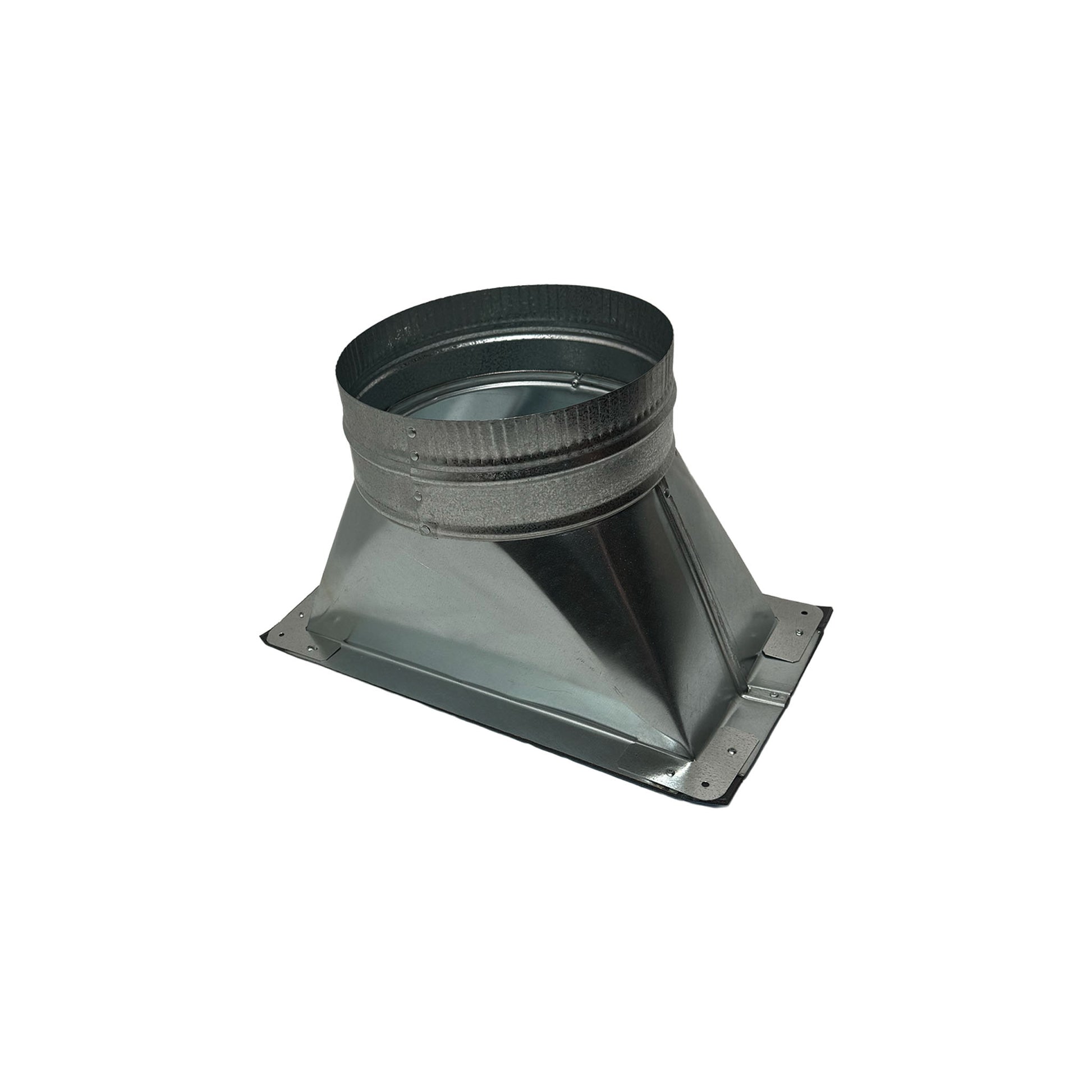

Jer-Air Model AT-600 | Centerline Airtight Takeoff With Gasket
Includes peel off adhesive gasket (1" x 1/8")
4"-9" diameter models are 28 gauge thickness
10"-20" diameter models are 26 gauge thickness
Takeoff fittings are constructed of galvanized sheet metal of lock forming and roll forming quality.The 1" wide mounting flanges come complete with die form...
| Diameter x Length x Width x Height | Price | Quantity |
|---|---|---|
| 28 Gauge 4"D x 8"L x 6"W x 10"H | $14.69 | |
| 28 Gauge 5"D x 10"L x 5"W x 10"H | $14.88 | |
| 28 Gauge 6"D x 12"L x 6"W x 10"H | $15.16 | |
| 28 Gauge 7"D x 12"L x 6"W x 10.25"H | $17.35 | |
| 28 Gauge 8"D x 12"L x 6"W x 10.25"H | $17.67 | |
| 28 Gauge 9"D x 15"L x 6"W x 10.25"H | $19.70 | |
| 26 Gauge 10"D x 16"L x 6.5"W x 12"H | $20.08 | |
| 26 Gauge 12"D x 18"L x 6.5"W x 12"H | $23.22 | |
| 26 Gauge 14"D x 20"L x 9.5"W x 13.75"H | $26.03 | |
| 26 Gauge 16"D x 24"L x 12"W x 14.5"H | $35.68 | |
| 26 Gauge 18"D x 26"L x 14"W x 14.5"H | $42.07 | |
| 26 Gauge 20"D x 28"L x 16"W x 15.25"H | $51.32 |
