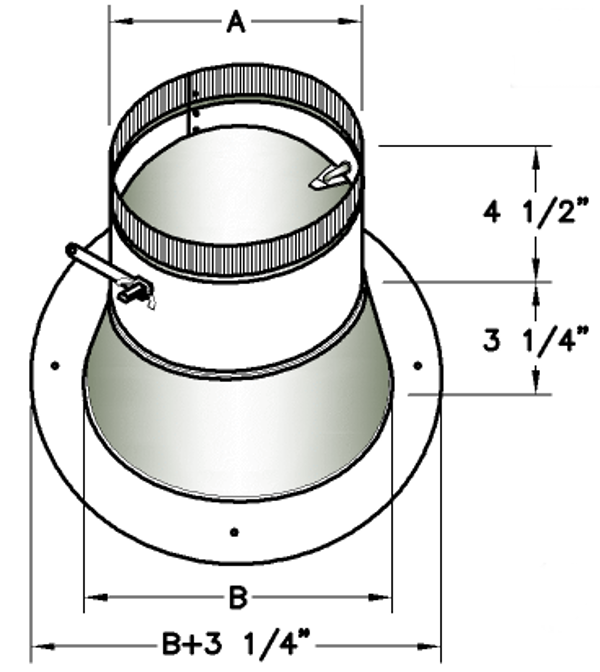

Jer-Air Model C-401 | Conical Stick-on Sleeve With Flange, Gasket, & Damper

Includes peel off adhesive gasket (1" x 1/8")
Includes Damper (22, 24, 26, or 28 gauge)
4"-9" diameter models are 28 gauge thickness
10"-20" diameter models are 26 gauge thickness
Damper blade available in 28, 26, 24, and 22 gauge metal

Conical fittings are constructed of galvanized sheet metal of lock forming and roll forming quality with riveted construction.

Barrel exit is beaded and crimped

Damper blade can be constructed with 28, 28, 24 or 22 gauge material.

Factory assembled damper hardware

Adhesive backed gasket for fast, airtight installation.

$12.20 USD

Sale Sold out

Best Prices
Fastest Lead Times
Highest Quality

View full details

Available Sizes

Diameter/Length/Width/Height	Price/ea.
28 Gauge 4"D x 5.75"L x 5.75"W x 6.25"H / 22 Gauge Damper	$12.20
28 Gauge 4"D x 5.75"L x 5.75"W x 6.25"H / 24 Gauge Damper	$12.20
28 Gauge 4"D x 5.75"L x 5.75"W x 6.25"H / 26 Gauge Damper	$12.20
28 Gauge 4"D x 5.75"L x 5.75"W x 6.25"H / 28 Gauge Damper	$12.20
28 Gauge 5"D x 6.75"L x 6.75"W x 6.25"H / 22 Gauge Damper	$12.88
28 Gauge 5"D x 6.75"L x 6.75"W x 6.25"H / 24 Gauge Damper	$12.88
28 Gauge 5"D x 6.75"L x 6.75"W x 6.25"H / 26 Gauge Damper	$12.88
28 Gauge 5"D x 6.75"L x 6.75"W x 6.25"H / 28 Gauge Damper	$12.88
28 Gauge 6"D x 7.75"L x 7.75"W x 6.25"H / 22 Gauge Damper	$13.68
28 Gauge 6"D x 7.75"L x 7.75"W x 6.25"H / 24 Gauge Damper	$13.68
28 Gauge 6"D x 7.75"L x 7.75"W x 6.25"H / 26 Gauge Damper	$13.68
28 Gauge 6"D x 7.75"L x 7.75"W x 6.25"H / 28 Gauge Damper	$13.68
28 Gauge 7"D x 8.75"L x 8.75"W x 6.25"H / 22 Gauge Damper	$15.52
28 Gauge 7"D x 8.75"L x 8.75"W x 6.25"H / 24 Gauge Damper	$15.52
28 Gauge 7"D x 8.75"L x 8.75"W x 6.25"H / 26 Gauge Damper	$15.52
28 Gauge 7"D x 8.75"L x 8.75"W x 6.25"H / 28 Gauge Damper	$15.52
28 Gauge 8"D x 9.75"L x 9.75"W x 6.25"H / 22 Gauge Damper	$17.02
28 Gauge 8"D x 9.75"L x 9.75"W x 6.25"H / 24 Gauge Damper	$17.02
28 Gauge 8"D x 9.75"L x 9.75"W x 6.25"H / 26 Gauge Damper	$17.02
28 Gauge 8"D x 9.75"L x 9.75"W x 6.25"H / 28 Gauge Damper	$17.02
28 Gauge 9"D x 10.75"L x 10.75"W x 6.25"H / 22 Gauge Damper	$19.72
28 Gauge 9"D x 10.75"L x 10.75"W x 6.25"H / 24 Gauge Damper	$19.72
28 Gauge 9"D x 10.75"L x 10.75"W x 6.25"H / 26 Gauge Damper	$19.72
28 Gauge 9"D x 10.75"L x 10.75"W x 6.25"H / 28 Gauge Damper	$19.72
26 Gauge 10"D x 11.75"L x 11.75"W x 6.25"H / 22 Gauge Damper	$21.01
26 Gauge 10"D x 11.75"L x 11.75"W x 6.25"H / 24 Gauge Damper	$21.01
26 Gauge 10"D x 11.75"L x 11.75"W x 6.25"H / 26 Gauge Damper	$21.01
26 Gauge 10"D x 11.75"L x 11.75"W x 6.25"H / 28 Gauge Damper	$21.01
26 Gauge 12"D x 13.75"L x 13.75"W x 6.25"H / 22 Gauge Damper	$25.21
26 Gauge 12"D x 13.75"L x 13.75"W x 6.25"H / 24 Gauge Damper	$25.21
26 Gauge 12"D x 13.75"L x 13.75"W x 6.25"H / 26 Gauge Damper	$25.21
26 Gauge 12"D x 13.75"L x 13.75"W x 6.25"H / 28 Gauge Damper	$25.21
26 Gauge 14"D x 15.75"L x 15.75"W x 6.25"H / 22 Gauge Damper	$41.36
26 Gauge 14"D x 15.75"L x 15.75"W x 6.25"H / 24 Gauge Damper	$41.36
26 Gauge 14"D x 15.75"L x 15.75"W x 6.25"H / 26 Gauge Damper	$41.36
26 Gauge 14"D x 15.75"L x 15.75"W x 6.25"H / 28 Gauge Damper	$41.36
26 Gauge 16"D x 17.75"L x 17.75"W x 6.25"H / 22 Gauge Damper	$51.19
26 Gauge 16"D x 17.75"L x 17.75"W x 6.25"H / 24 Gauge Damper	$51.19
26 Gauge 16"D x 17.75"L x 17.75"W x 6.25"H / 26 Gauge Damper	$51.19
26 Gauge 16"D x 17.75"L x 17.75"W x 6.25"H / 28 Gauge Damper	$51.19
26 Gauge 18"D x 19.75"L x 19.75"W x 6.25"H / 22 Gauge Damper	$56.01
26 Gauge 18"D x 19.75"L x 19.75"W x 6.25"H / 24 Gauge Damper	$56.01
26 Gauge 18"D x 19.75"L x 19.75"W x 6.25"H / 26 Gauge Damper	$56.01
26 Gauge 18"D x 19.75"L x 19.75"W x 6.25"H / 28 Gauge Damper	$56.01
