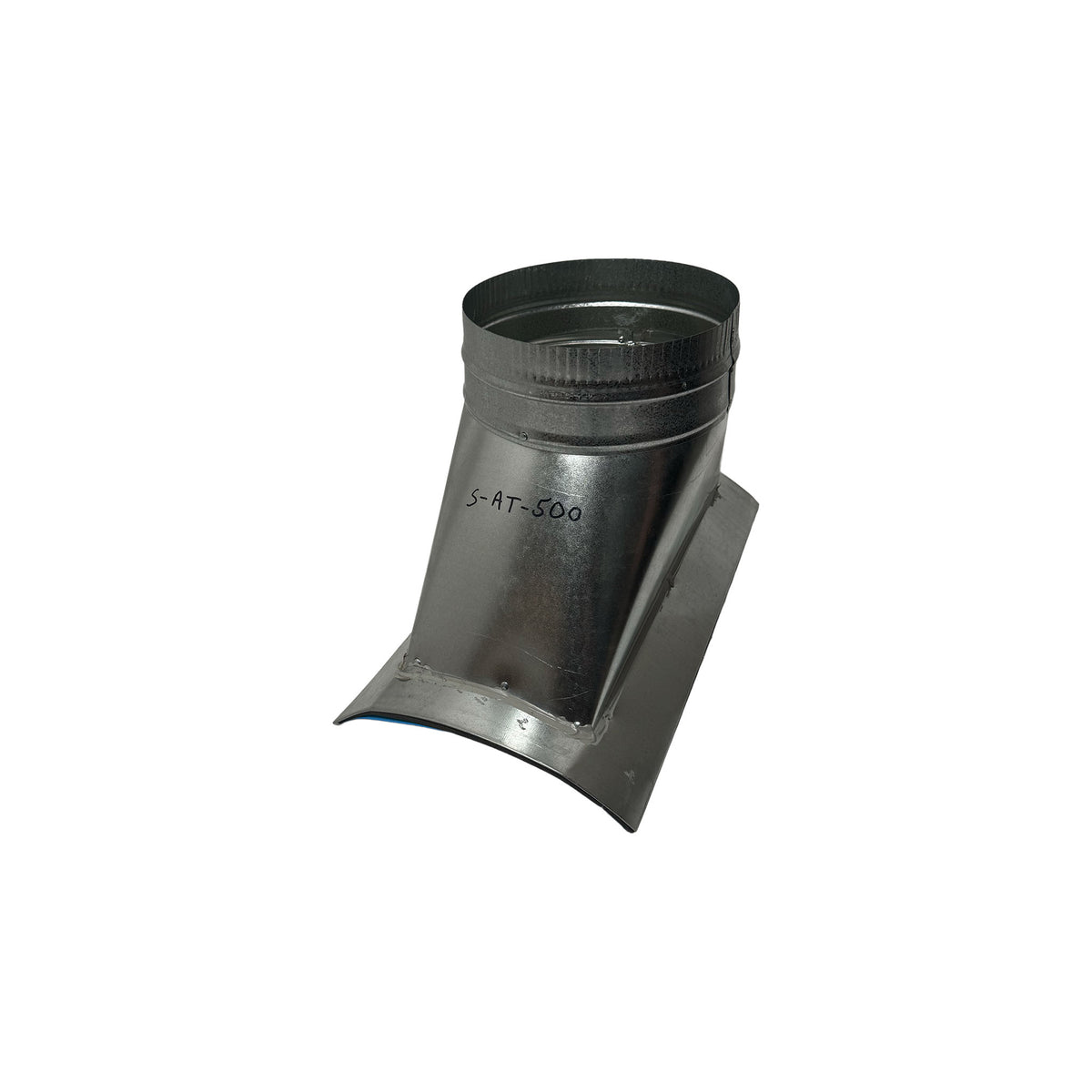

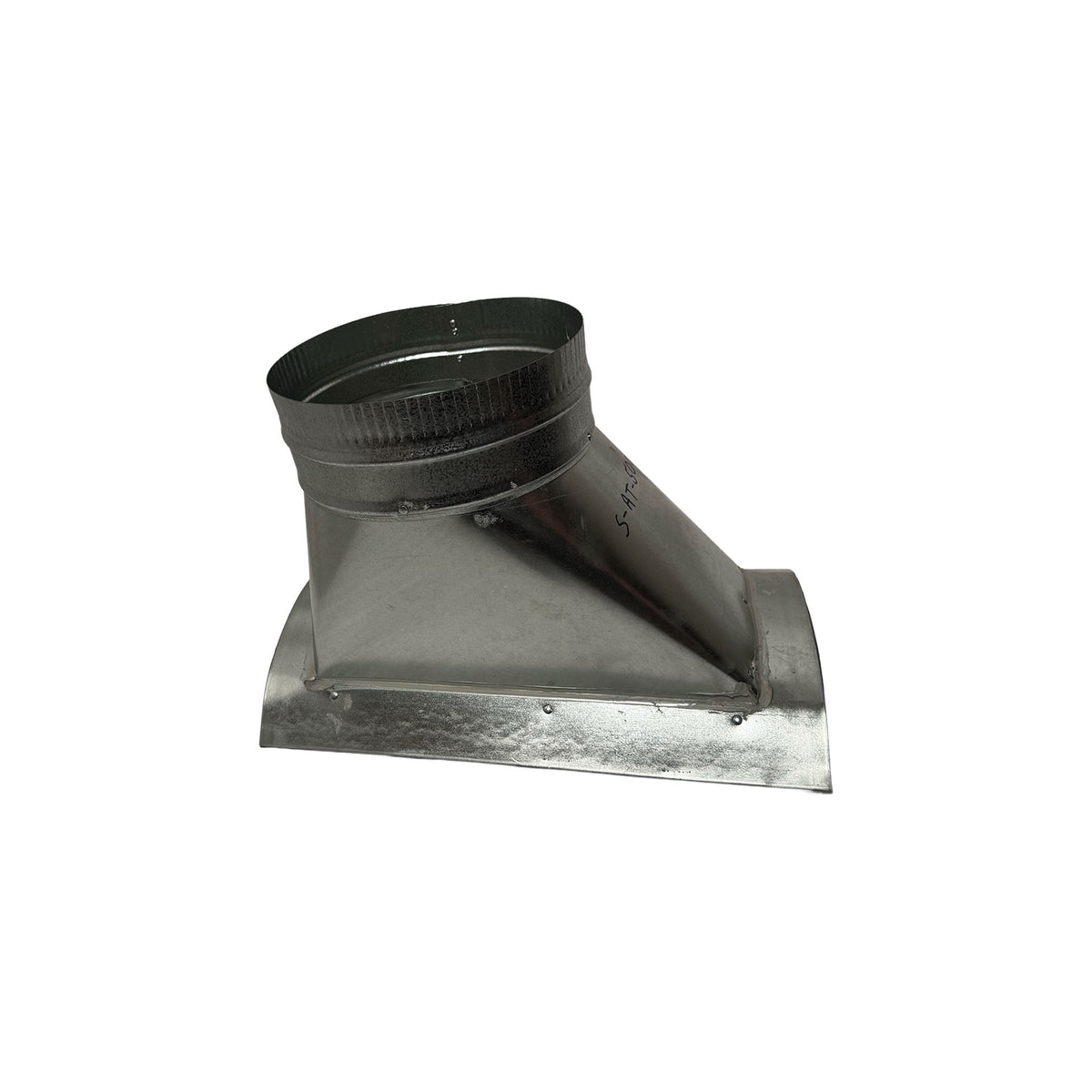

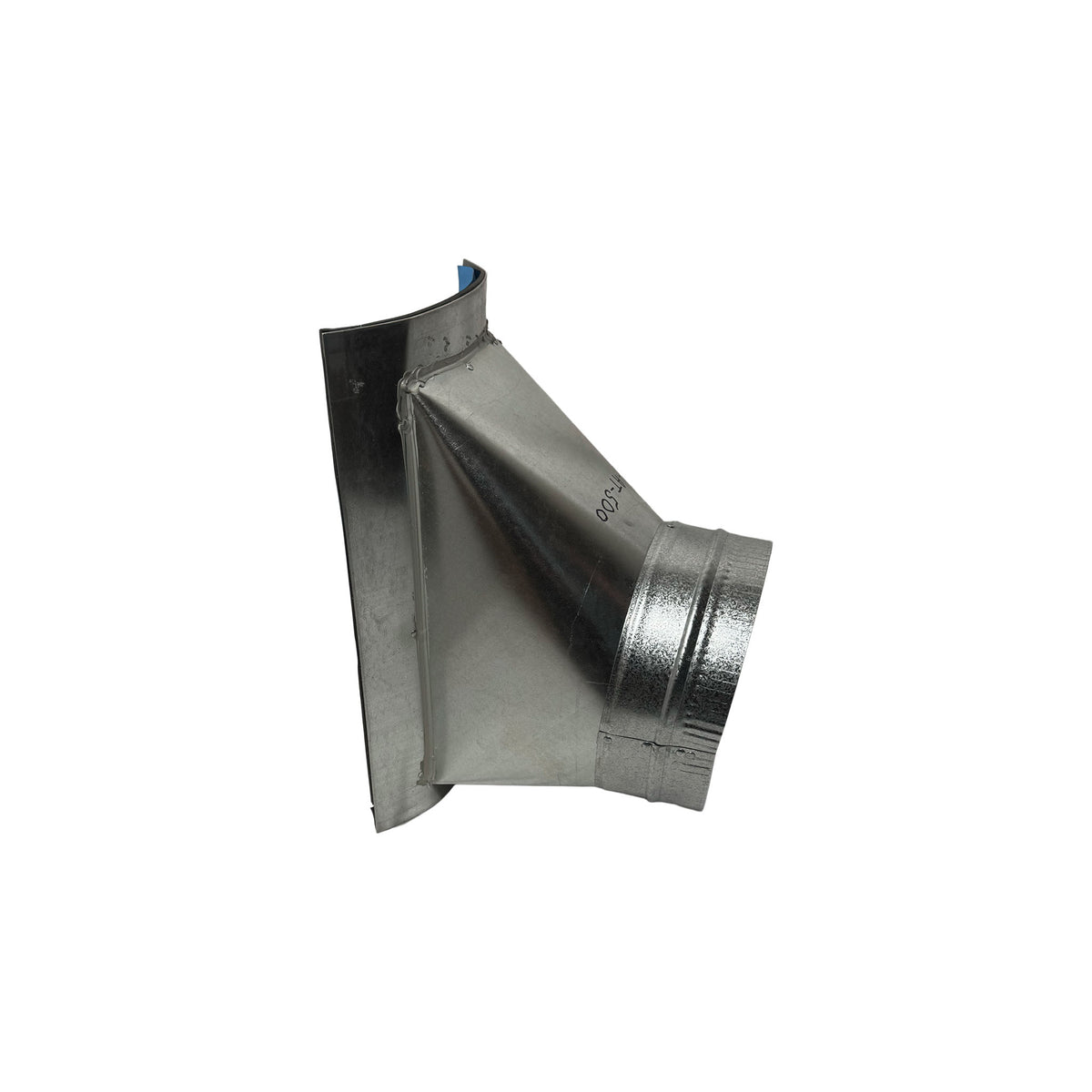

Jer-Air Model S-AT-500 | Airtight 45° Saddle Takeoff with Gasket

Saddle Fitting version — Model S-AT-500.

Includes peel off adhesive gasket (1" x 1/8")
4"-9" diameter models are 28 gauge thickness
10"-20" diameter models are 26 gauge thickness

Takeoff fittings are constructed of galvanized sheet metal of lock forming and roll forming quality.

The 1" wide mounting flanges come complete with die formed corner clips for added rigidity and pre-punched screw holes.

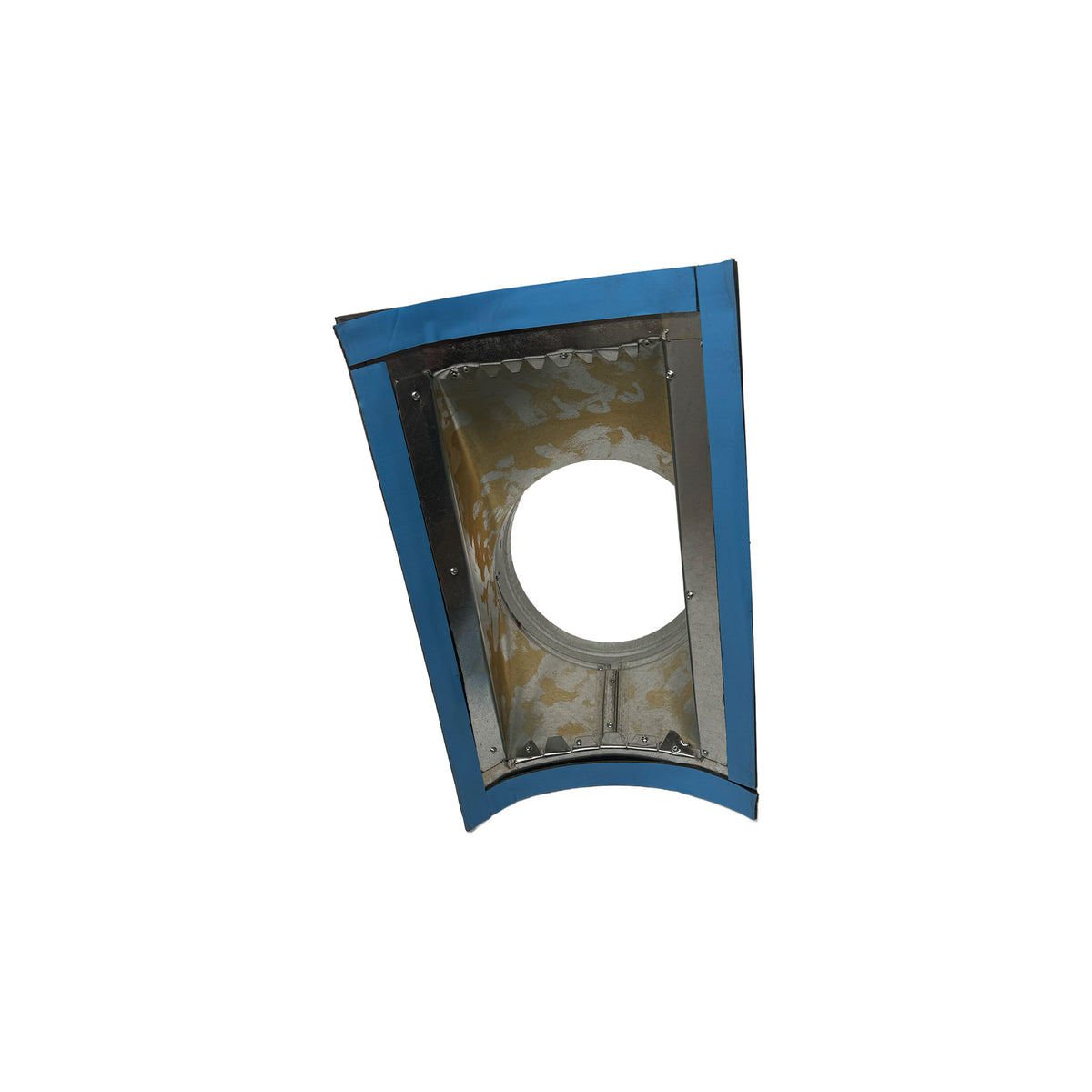

A peel off adhesive gasket (1" x 1/8") is provided by the factory to hold the fitting securely in place during installation and to assure minimal leakage.

$10.45 USD

Sale Call For Price

Best Prices
Fastest Lead Times
Highest Quality

View full details

Item Order Sheet

Jer-Air Model S-AT-500 | Airtight 45° Saddle Takeoff with Gasket

Saddle Fitting version — Model S-AT-500. Includes peel off adhesive gasket (1" x 1/8") 4"-9" diameter models are 28 gauge thickness 10"-20" diameter models are 26 gauge thickness Takeoff fittings are constructed of galvanized sheet metal of lock forming and roll forming quality. The 1" wide moun...

Diameter x Length x Width x Height	Price	Quantity
28 Gauge 4"D x 8"L x 6"W x 8.5"H	$10.45
28 Gauge 5"D x 10"L x 5"W x 8.5"H	$10.45
28 Gauge 6"D x 12"L x 6"W x 8.5"H	$10.45
28 Gauge 7"D x 12"L x 6"W x 8.75"H	$11.77
28 Gauge 8"D x 12"L x 6"W x 8.75"H	$11.77
28 Gauge 9"D x 15"L x 6"W x 8.75"H	$14.19
26 Gauge 10"D x 16"L x 6.5"W x 9.5"H	$14.19
26 Gauge 12"D x 18"L x 8.5"W x 9.5"H	$17.27
26 Gauge 14"D x 20"L x 9.5"W x 12.25"H	$19.91
26 Gauge 16"D x 24"L x 12"W x 13"H	$29.70
26 Gauge 18"D x 26"L x 14"W x 13"H	$34.76
26 Gauge 20"D x 28"L x 16"W x 13.75"H	$42.35
