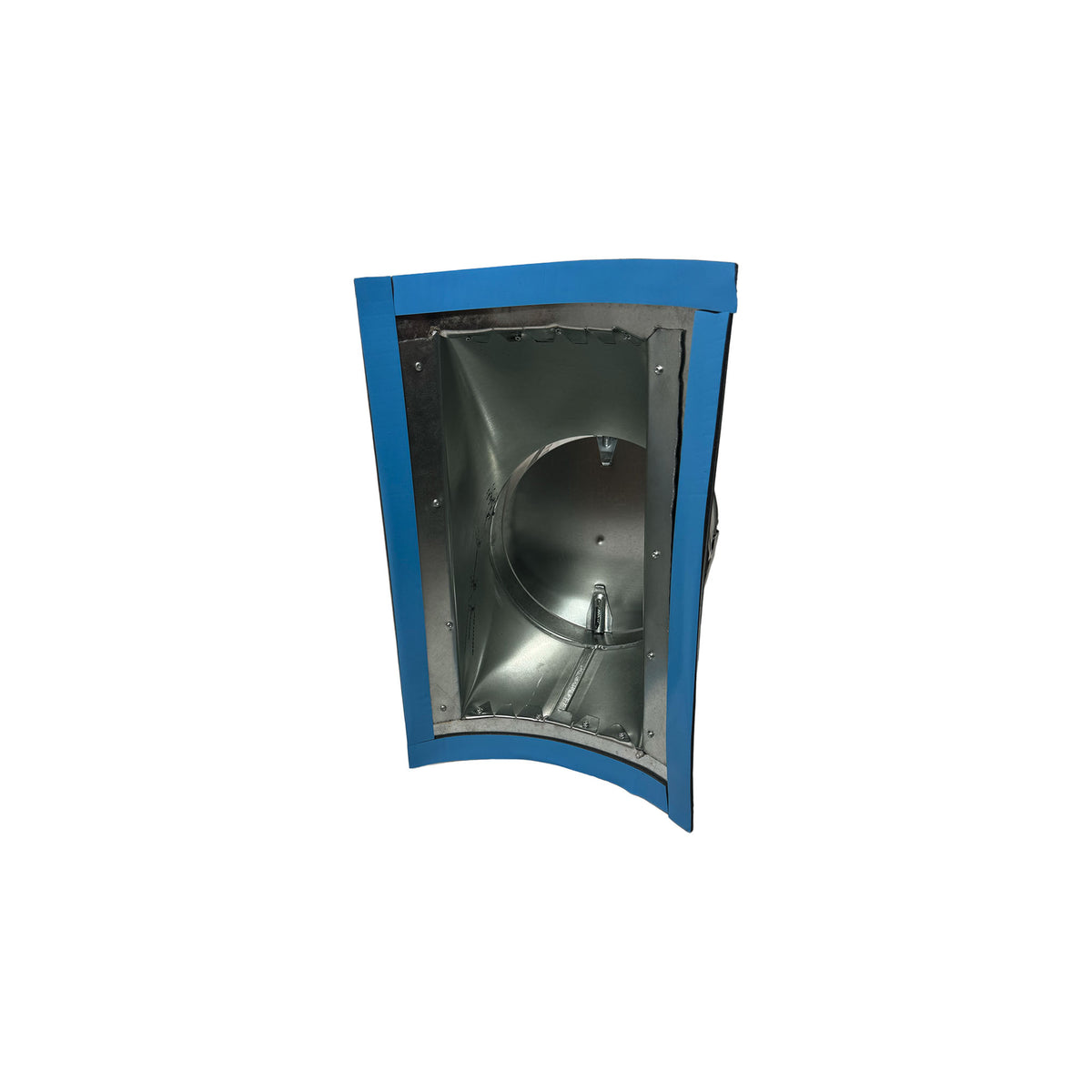

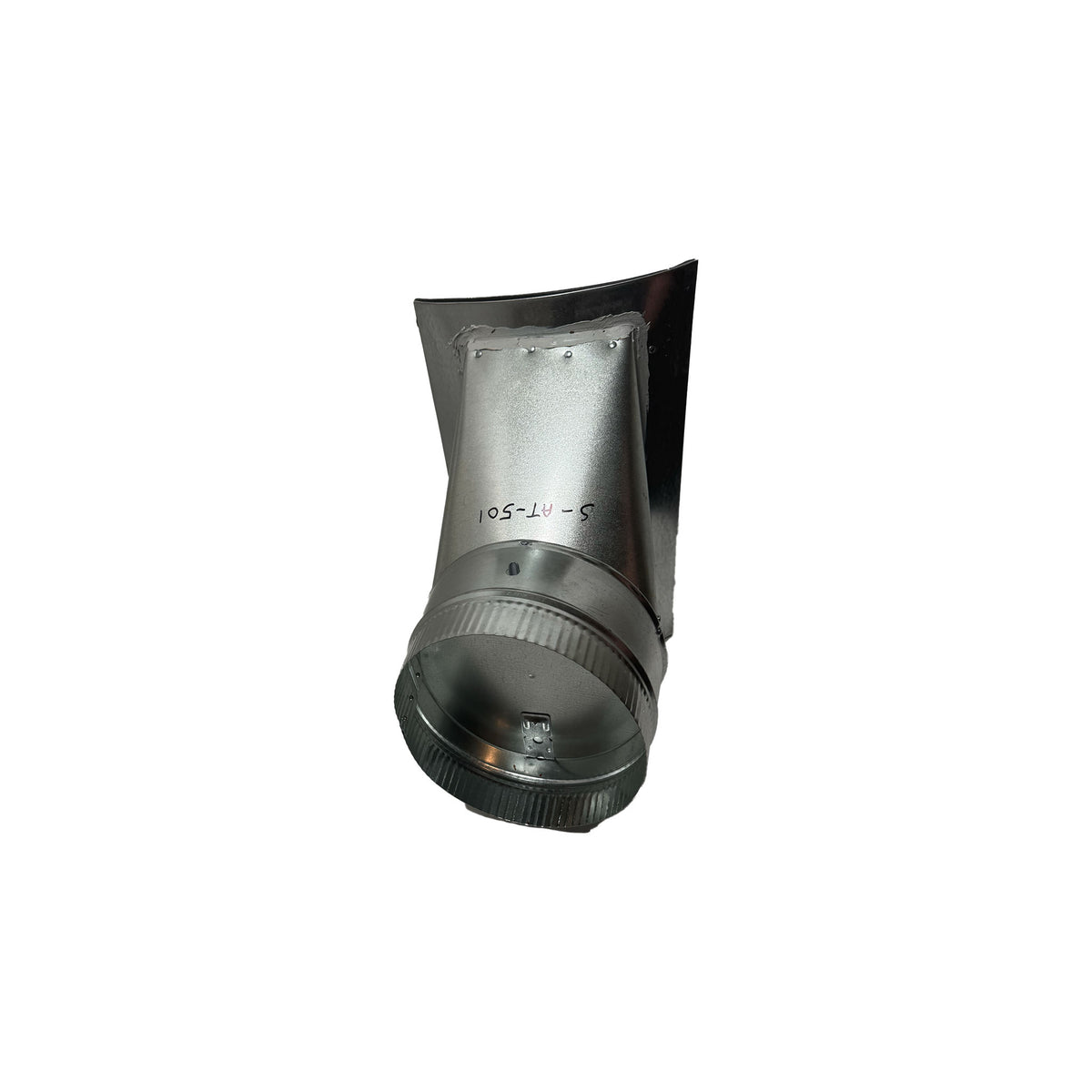

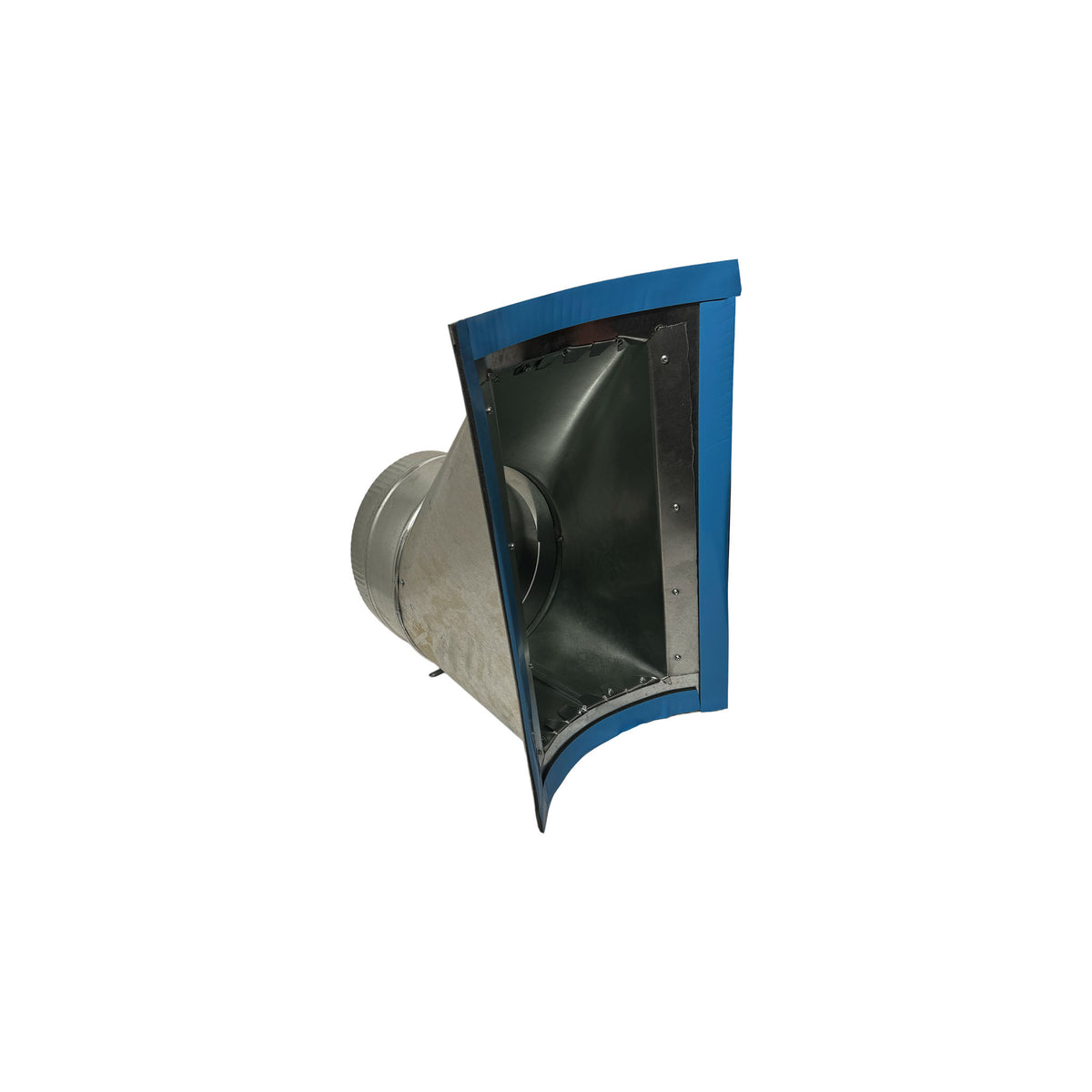

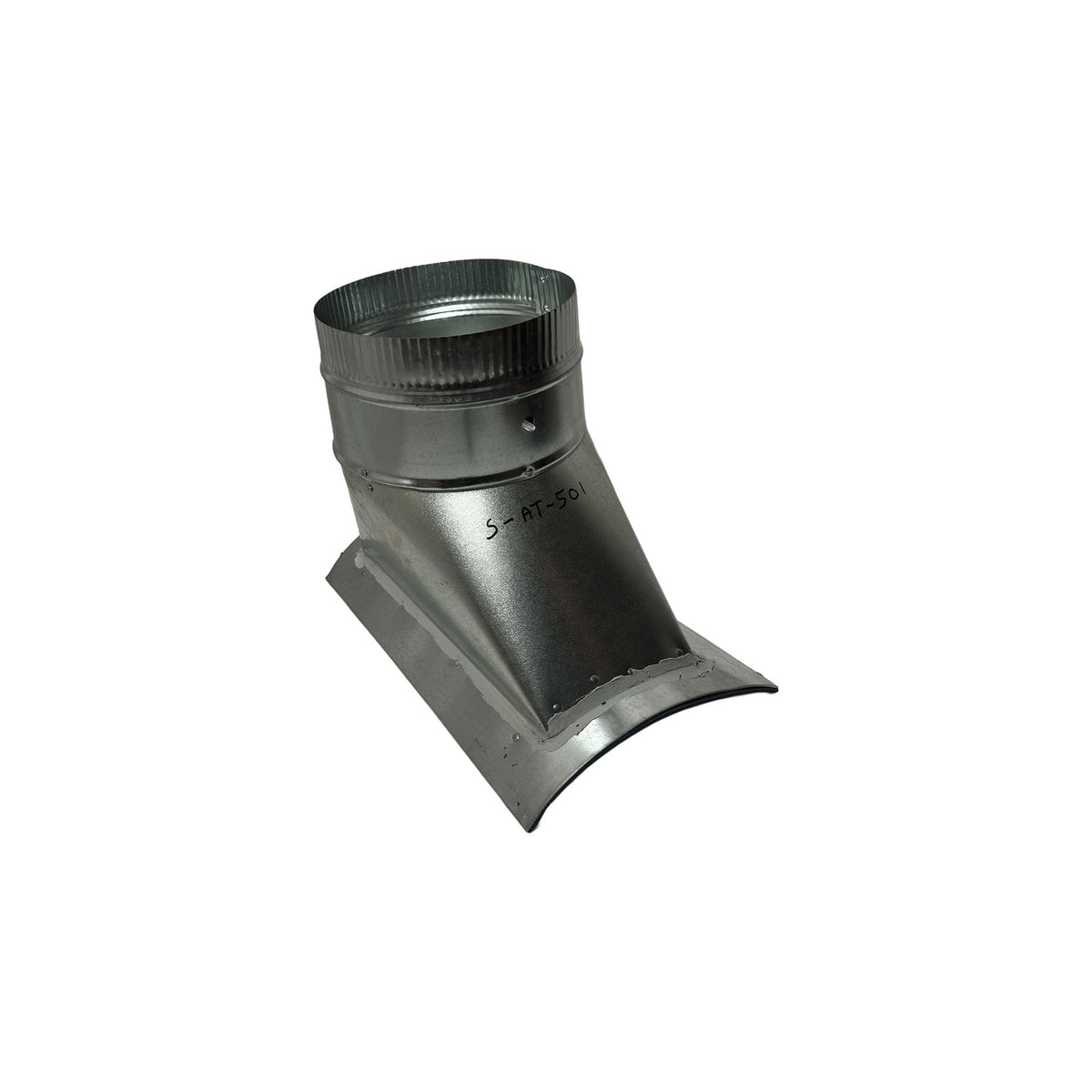

Saddle Fitting version — Model S-AT-501.

• Includes peel off adhesive gasket (1" x 1/8")
• Includes Damper (22, 24, 26, or 28 gauge)
• 4"-9" diameter models are 28 gauge thickness
• 10"-20" diameter models are 26 gauge thickness
• Damper blade available in 28, 26, 24, and 22 gauge metal

Takeoff fittings are constructed of galvanized sheet metal of lock forming and roll forming quality.

The 1" wide mounting flanges come complete with die formed corner clips for added rigidity and pre-punched screw holes.

A peel off adhesive gasket (1"x x1/8") is provided by the factory to hold the fitting securely in place during installation and to assure minimal leakage.

Damper blade can be constructed with 28, 28, 24 or 22 gauge material.
