PRODUCT NOTES

• 26gauge galvanized construction
• Foam insulated door
• Door sealed with 1/2" wide by 1/8" thick foam tape.
• A peel-off adhesvie gasket is provided by the factory to hold the fitting in place securely during installation and to assure minimal leakage.

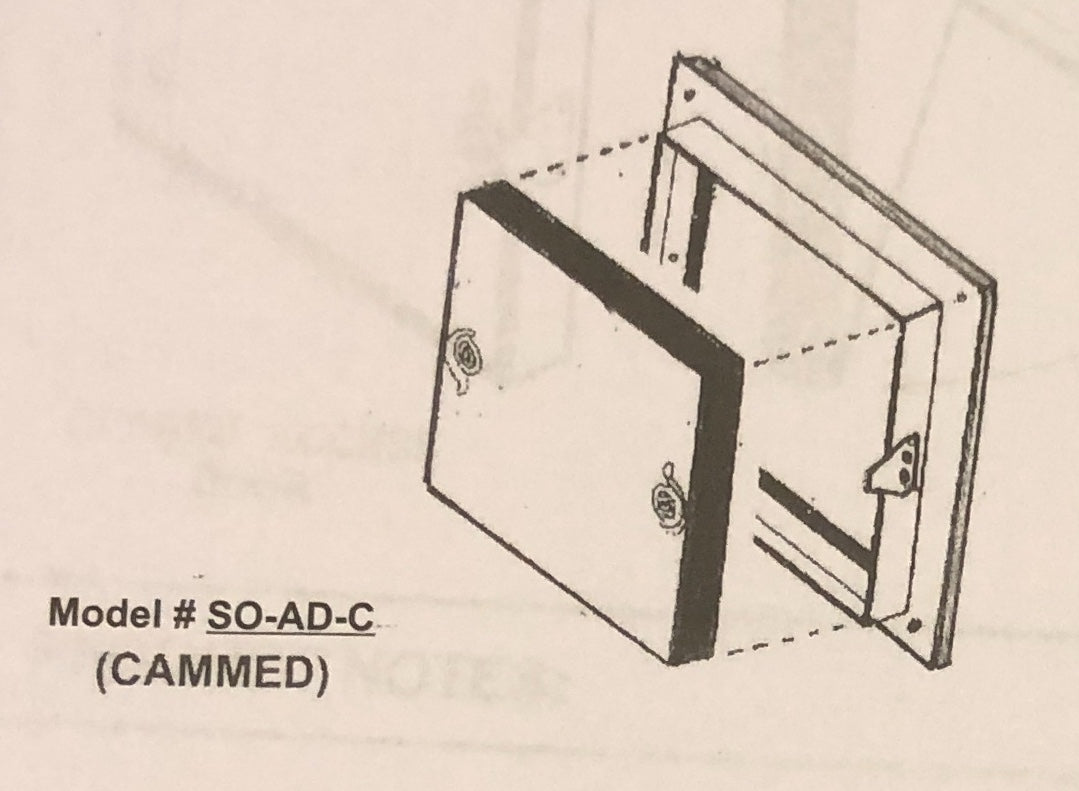

• 18 x 18 and larger cammed doors are provided with 4 cams
• Fastening pins and washers provided for Duchboard applications.
• Tech screws used for Metal Duct application.

Sizes Available

• 6” x 6”
• 8” x 8”
• 10” x 10”
• 12” x 12”
• 14” x 14”
• 16” x 16”
• 18” x 18”
• 20” x 20”
• 22” x 22”
• 24” x 24”
• *RECTANGLE DOOR AVAILABLE*
